Description

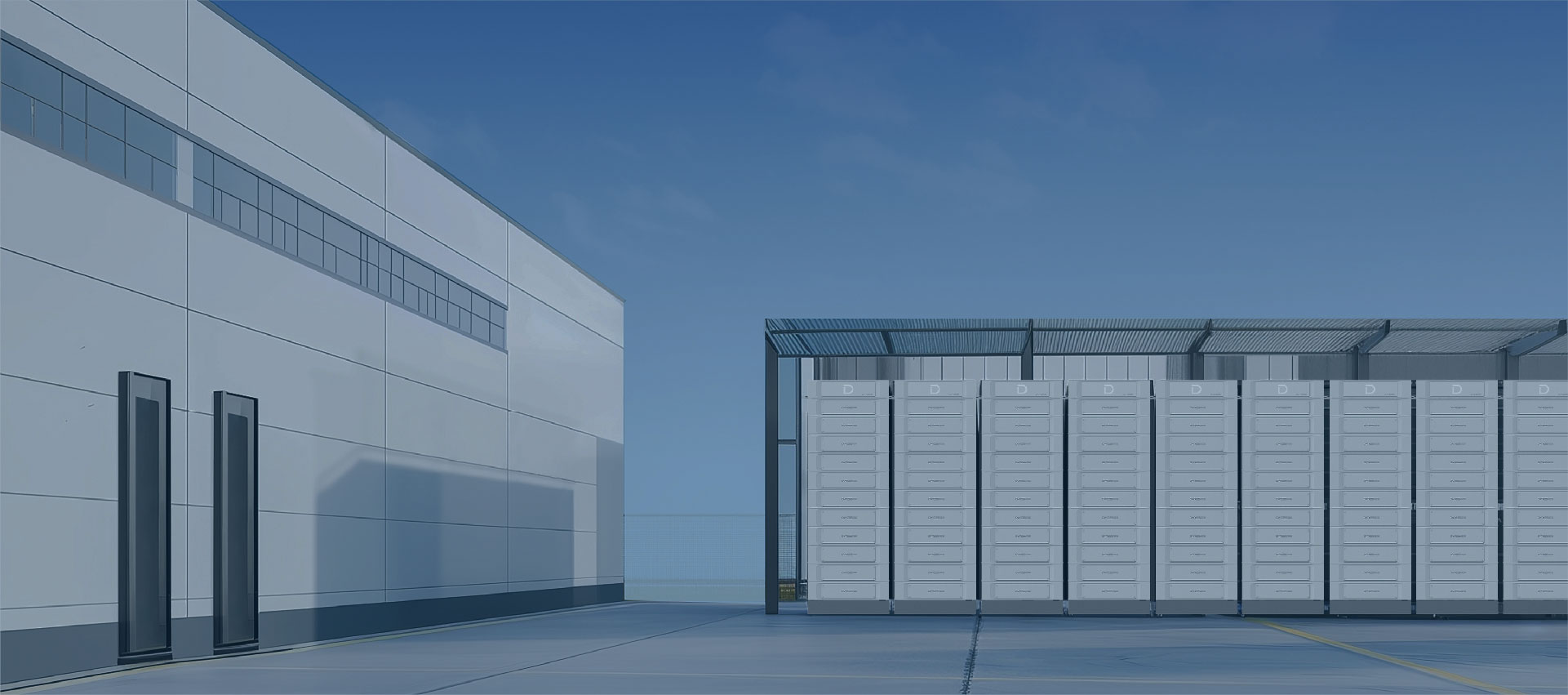

Dyness STACK100 SBDU100 BDU and base are the required control, connection and foundation components for one modular STACK100 high-voltage battery cluster.
Delivery scope
The manufacturer packing list includes one SBDU100/BDU (590 x 390 x 133.5 mm), one STACK100 base (590 x 390 x 100 mm) and the specified fixing, termination and CAN/RS485 connection accessories. No S51100 energy module, inverter, site protection, external balance-of-system work or commissioning is included.
STACK100 configuration
- Compatible module: Dyness S51100
- Three to fifteen matching modules per cluster
- Nominal cluster energy: 15.36 to 76.8 kWh
- Operating-voltage range across supported configurations: 134 to 876 V DC
- Communication: CAN / RS485; built-in Wi-Fi supports monitoring and OTA functions
- Installed-system protection level: IP20 – indoor installation only
- Up to twelve clusters in parallel only where current Dyness compatibility, firmware and project engineering support the design
Compatibility and safety
STACK100 is a high-voltage DC system. Module generation and quantity, inverter model and firmware, voltage window, communication, grounding, ventilation, fire protection, clearances and load-bearing capacity must be verified for the selected configuration. SBDU100 is for standard STACK100 and must not be substituted with the IP66 STACK100 Pro SBDU100 Pro controller.
Availability and freight
In stock.
Download the locally hosted official English datasheet and official English user manual. Browse battery accessories.
